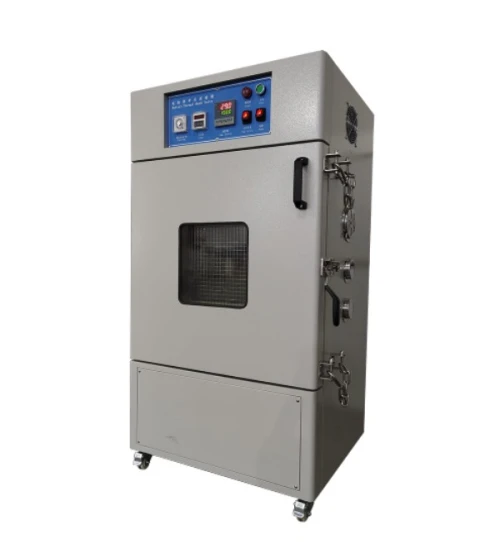

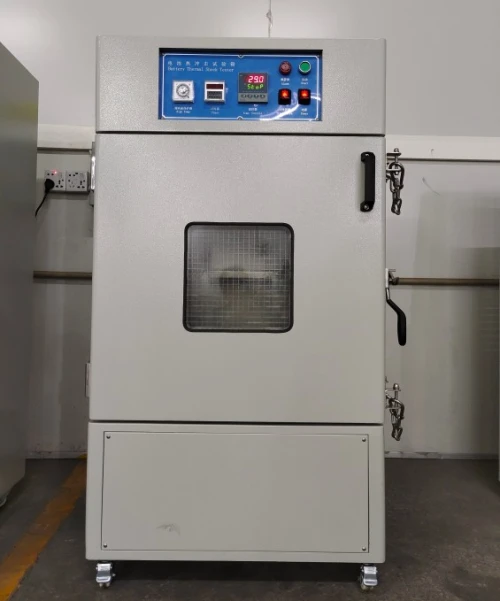

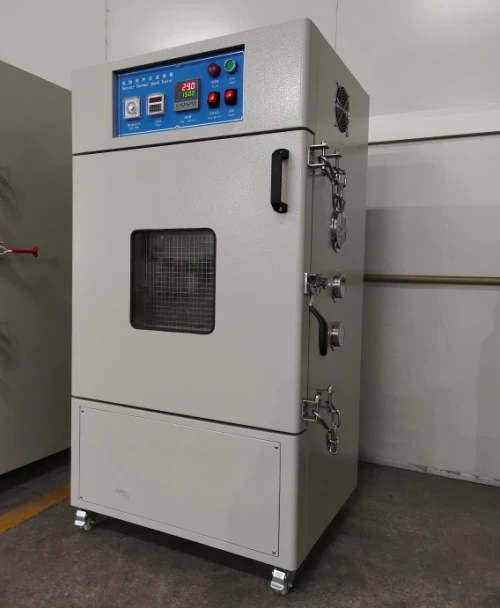

Battery Thermal Shock Test Chamber
Battery Thermal Shock Test Chamber
Battery Thermal Shock Test Chamber
Battery Thermal Shock Test Chamber
Model
HUD-H210

Item specifics

Inner dimensions
400x400x400mm
Outside dimensions
800x700x1310mm
Temperature range
RT+10~200℃
Temperature accuracy
0.1℃
Temperature stability
±1.0℃
Temperature uniformity
±2℃

Review

Description

Application

Battery thermal shock test chamber is to simulate the battery placed in a high temperature chamber with natural convection or forced ventilation. It is heated to the set test temperature at a certain heating rate and maintained for a certain period of time. The hot air circulation system can ensure the uniform working temperature distribution.

Standards

GB/T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles"

GB/T 31241-2014   "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"

UN 38.3 "United Nations Manual of Transport Tests and Standards for Dangerous Goods"

IEC 62133 "Battery (pack) composed of batteries and safety requirements for portable equipment"

UL 1642:2012 "Lithium Battery Standard"

Main Parameters

1. Inner dimensions

 400x400x400mm (width x depth x height);

2. Outside dimensions

 800x700x1310mm (width x depth x height);

3. Temperature range

 RT+10~200;

4. Temperature accuracy

 0.1;

5. Temperature stability

 ±1.0;

6. Temperature uniformity

 ±2;

7. Heating time

 (5±1)/min;

8. Internal material

 SUS304 stainless steel plate, thickness 1.2mm;

9. External material

 1.5mm thick cold-rolled steel plate with paint treatment;

10. Box door

 a single door opens to the left, and an explosion-proof chain is installed on the side of the box door;

12. Control method

 push-button control;

13. Pressure relief door size

 200x200mm;

14. Smoke exhaust pipe

 diameter φ100mm, located at the back of the box;

15. Observation window

 Two-layer tempered glass with a size of 250x250mm, equipped with stainless steel mesh;

16. Temperature control meter

 Programmable temperature controller, which can control the total heating time, which is different from ordinary temperature control meters.

17. Power supply

 1, 220V, 20A
