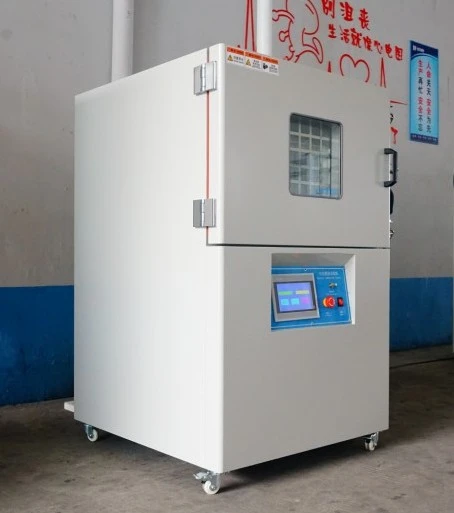

Battery Flammability Test Chamber丨Battery Burning Test Chamber丨Battery Projectile Tester
- Model
- HUD-H209
Item specifics
- Diameter of test hole
- 100±2mm
- Inner dimensions
- 750x750x500mm
- Outside dimensions
- 1000x950x1310mm
- Control method
- push-button
- Flame time
- 0~99H99M, can be set
Review
Description

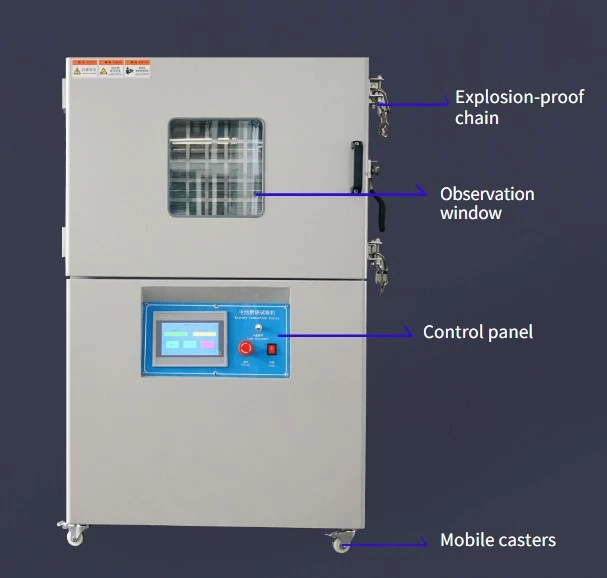

Battery Burning Test Chamber is suitable for the flame resistance test of lithium batteries (or battery packs).
Test Standard
UL 1642:2012 "Lithium Battery Standard"
UN38.3(2012) "Recommendations on the Transport of Dangerous Goods-Manual of Tests and Standards" Part III
IEC62133-2012 "Safety requirements for batteries and battery packs containing alkaline or non-acid electrolytes"
GB/T 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"
Drill a round hole with a diameter of 102mm on an experimental platform, and place a steel wire mesh on the round hole, place the battery under test on the steel wire mesh screen, install an octagonal aluminum wire mesh around the sample, and then ignite The burner heats the sample until the battery explodes or the battery burns out, and the combustion process is timed.
Safety System
* Explosion-proof pressure relief device
* Smoke exhaust device
* Fire extinguishing system
* Electronic door lock system
* Safety stop switch
1. Control method | PLC touch screen control; |
2. Burner | Bunsen burner, the inner diameter of the tube mouth is 10mm, and the length is about 100mm; |
3. Flame application time | 0~99H99M, can be set; |
4. Diameter of test hole | 100±2mm; |
5. Test sieve | a sieve made of stainless steel wire woven with a diameter of 0.43mm (0.017inch), containing 20 meshes per inch; |
6. The height of the flame from the screen | 38mm; |
7. Octagonal mesh cover | the distance between each pair of faces is 24" (that is, 610mm), and the eight faces are movable, which is convenient for replacement and disassembly; |
8. The height of the octagonal net cover | 12" (that is, 305mm); |
9. Octagonal cover material | |
10. Material of battery mesh | stainless steel mesh; |
11. Combustion gas | methane or liquefied petroleum gas (customer-provided); |
12. Inner dimensions | 750x750x500mm (width x depth x height); |
13. Outside dimensions | 1000x950x1310mm (width x depth x height, including door lock); |
14. Pressure relief door size | 200x200mm; |
15. Smoke exhaust pipe | diameter φ100mm, located at the back of the box; |
16. Box door | a single door opens to the left, and an explosion-proof chain is installed on the side of the box door; |
17. Power supply | 1∮, 220V, 50/60Hz, 200W |
18. Equipment weight | about 160kg |

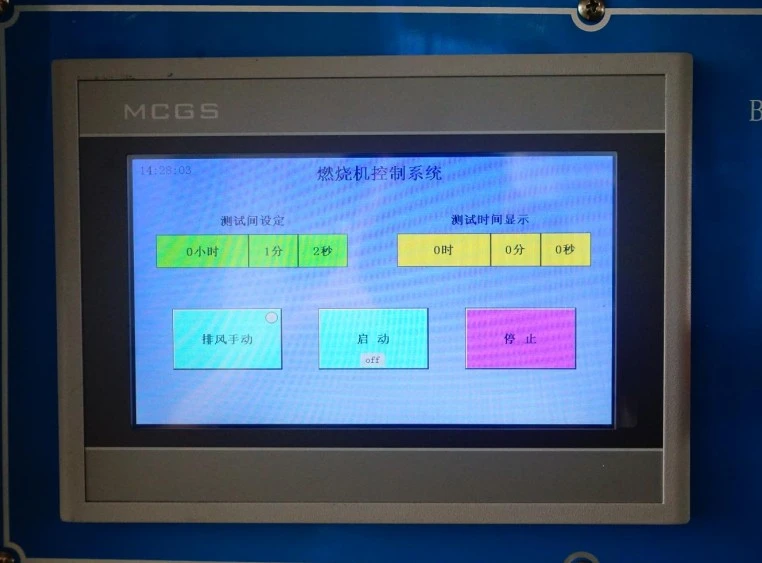

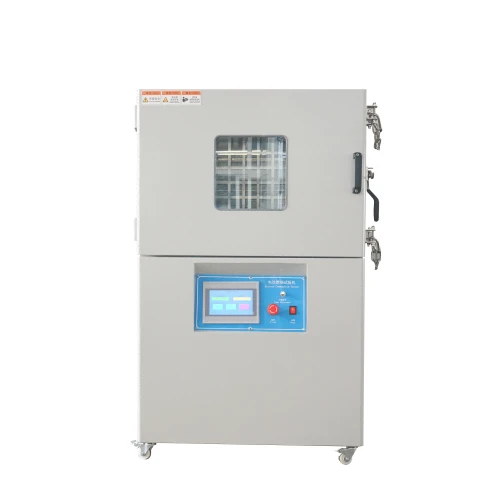

PLC Touch Screen
Easy to operate

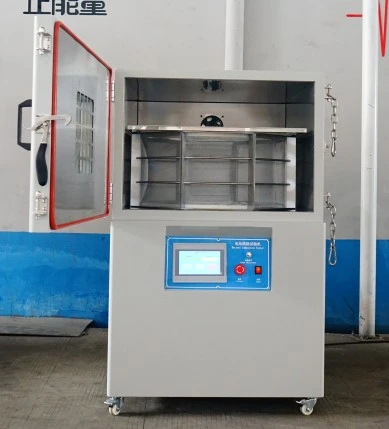

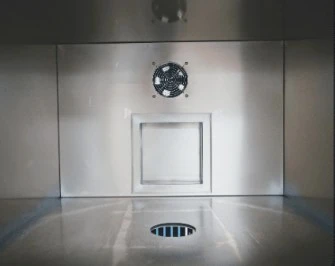

Inner Chamber

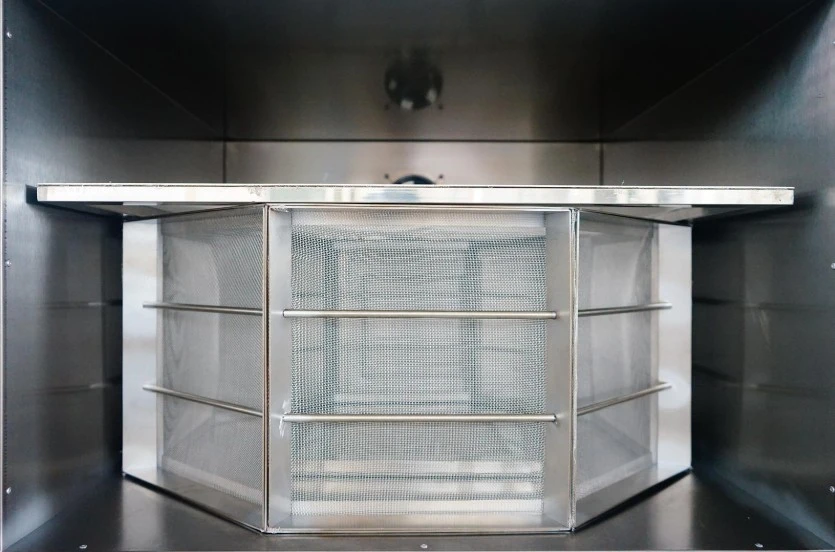

Octagon Mesh Enclosure
Place samples, diameter 610mm, height 305mm

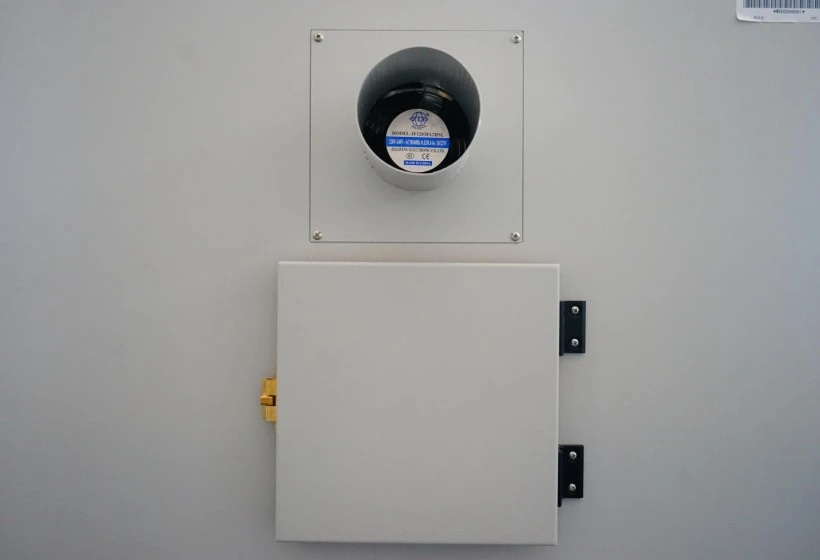

Relieve pressure and exhaust smoke to assure safe
