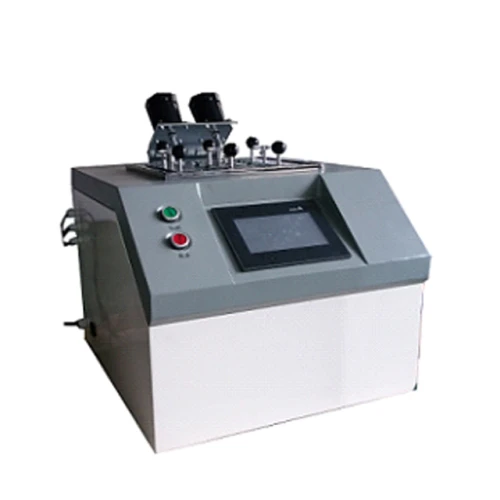

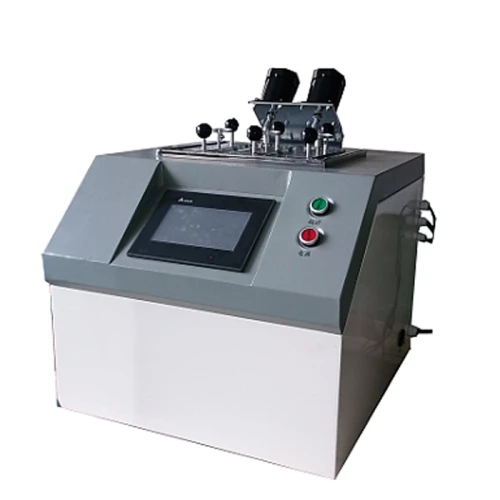

- 300°C HDT/VICAT Tester china Rubber and Plastic Testing manufacturer huda
- 300°C HDT/VICAT Tester china Rubber and Plastic Testing manufacturer huda
- 300°C HDT/VICAT Tester china Rubber and Plastic Testing manufacturer huda
- 300°C HDT/VICAT Tester china Rubber and Plastic Testing manufacturer huda
Model
HUD-R801-2

Item specifics

Name
- 300°C HDT/VICAT Tester
Temperature range
Room temperature - 300°C
Heating rate
(120±10)°C/h (12±1°C/6min); (50±5)°C/h(5±0.5°C/6mi
Temperature error
0.1°C
Temperature accuracy
±0.5°C
Test position
3

Product review

Description

Application

It is designed to measure heat deflection temperature and VICAT softening temperature for evaluation of thermal property of plastic materials. This tester features high precision temperature ramp rate control. LVDT sensor is used on each station to ensure high accuracy of deflection measurement. The operator can easily monitor real-time graph, start cooling, modify test condition and edit test report in a few simple steps.

Test standards

ASTM-D1525ASTM-D648DIN53460DIN53461ISO-306ISO-75

Features

Temperature range

Room temperature - 300°C

Heating rate

(120±10)°C/h (12±1°C/6min); (50±5)°C/h(5±0.5°C/6min)

Temperature error

0.1°C

Temperature accuracy

±0.5°C

Max. deflection error

±0.001mm

Deflection measuring range

0-1.5mm

Test position

3

Load pole and pallet weight

68g

Heating power

4KW

Cooling method

Natural cooling

Power

Single phase, 220V, 50Hz

Dimension

540mm×520mm×970mm
