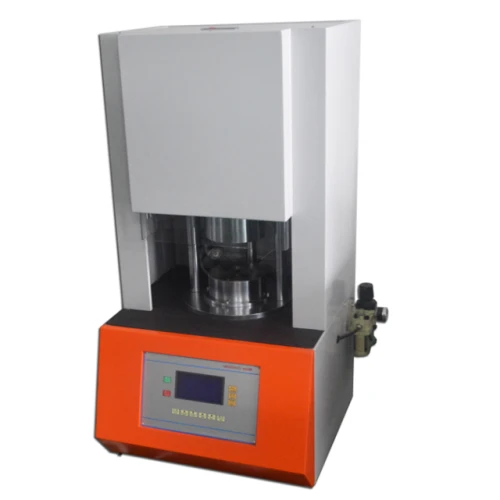

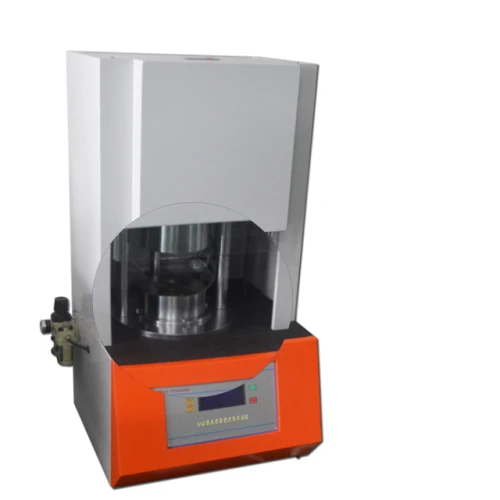

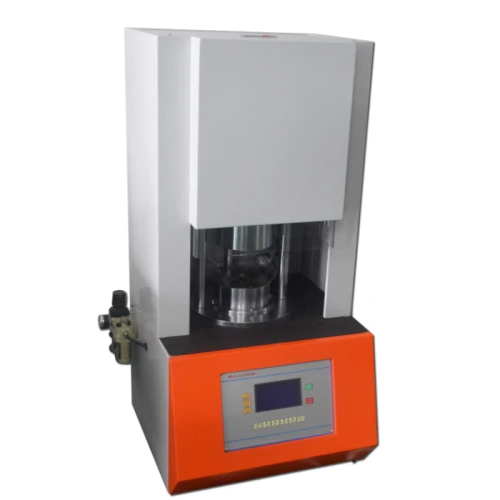

200°C 0-200MV Mooney Viscometer
- Model
- HUD-R812
Item specifics
- Name
- Mooney Viscometer
- Temperature Range
- Room temperature to 200°C
- Temperature Resolution
- 0.01℃
- Temperature Control Accuracy
- ±0.3°C
- Rotor Speed
- 2±0.02 R/M
- Torque Range
- 0-200MV
Review
Description
APPLICATION
Mooney viscometer is used for testing reclaimed rubber or gross rubber viscosity, etc. Adopting a new microprocessor and LCD touch screen with built-in automatic balance and calibration device, it can automatically calibrate by pressing the button. With an accurate specimen temperature control system and high torque measuring precision, this machine is highly sensitive to changes in rubber materials, and has a better repeatability and reproducibility.
TEST STANDARD
ASTM D1646、ISO 289、JIS K6300
STANDARD FEATURES
Temperature Range | Room temperature to 200°C |
Temperature Resolution | 0.01℃ |
Temperature Control Accuracy | ±0.3°C |
Rotor Speed | 2±0.02 R/M |
Torque Range | 0-200MV |
Torque Resolution | 0. 1MV |
Test Report | Date, Temperature, Mooney scorch curve, MV, T5, T35, T3, T18, @15, @30 |
