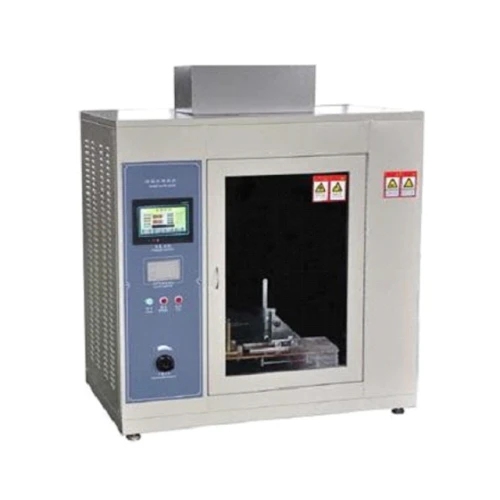

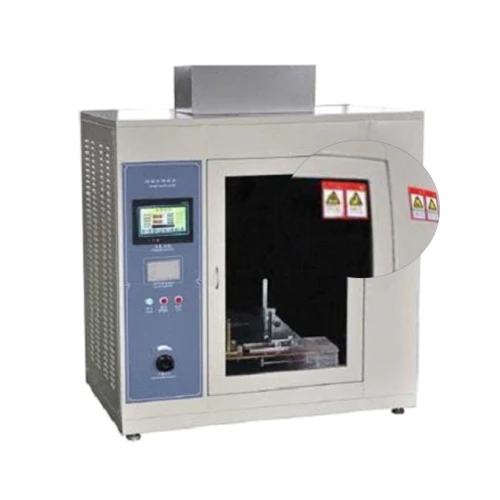

Model
HUD-T806

Item specifics

Name
Gloss Wire Tester
Glow wire
4mm ± 0.04mm Ni/Cr(80/20)
Glow wire electric heating temperature
500℃~1000℃ (digital display) Fluctuation < 3℃
Pressure of Specimen to glow wire
1.0N±0.1N, adjustable
Testing time
30s±0.1s (1s~999.9s, digital display)
Machine dimension(W*D*H)
1160×550×1050mm, Air outlet hole Ø100mm

Product review

Description

APPLICATION

Glow Wire Tester is heating the specified material Ni80/Cr20 and shape wire to testing temperature (550℃1000℃) by large current in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Observe if the specimen is light-off or light time to determine the fire risk of electric and electronic product, test the ease of ignition, GWIT, flammability and GWFI of solid insulation material and other solid combustible material.

TEST STANDARD

IEC 60695-2-10 & IEC 60695-2-11

STANDARD FEATURES

Controller

PLC Touch screen interface

Glow wire

4mm ± 0.04mm Ni/Cr(80/20)

Thermocouple

0.5mm K type, Imported insulation type thermocouple

Glow wire electric heating temperature

500℃1000℃ (digital display)

Fluctuation < 3℃

Pressure of Specimen to glow wire

1.0N±0.1N, adjustable

Max. ironing depth

7mm ± 0.5mm, adjustable

Specimen moving speed

10mm /s25mm /s

Testing time

30s±0.1s (1s999.9s, digital display)

Standard silver foil

Thickness 0.06mm, purity ≥99.8%

Ignition floor plate thickness

Adopt 10mm white pine wood covered with standard silk paper

Test area

≥ 0.5m3, black background ≤ 20Lx

Machine dimension(W*D*H)

1160×550×1050mm, Air outlet hole Ø100mm

Weight

80kg

Power

AC220V, 50-60Hz, single phase

Test standard

IEC 60695-2-10 & IEC 60695-2-11

Accessory

10mm white pine wood plate x 1pc

Silk paper x 20pc

Calibration silver foil x 5pcs
