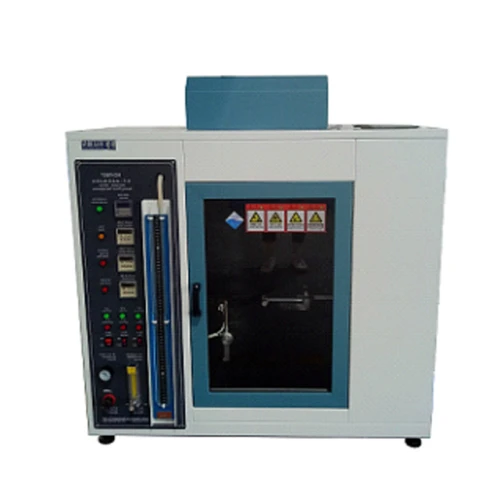

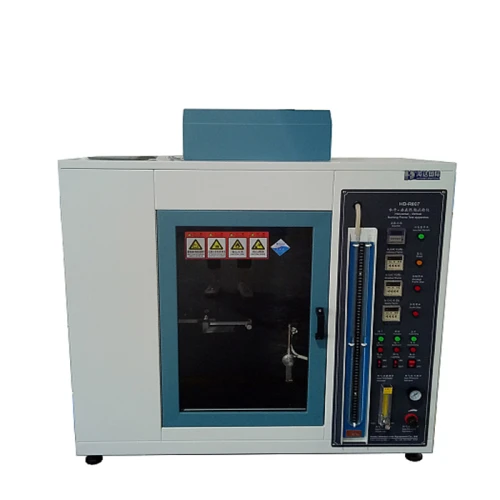

UL 94 Flammability Tester APPLICATION
UL 94 Flammability Tester APPLICATION
UL 94 Flammability Tester APPLICATION
UL 94 Flammability Tester APPLICATION
Model
HUD-R807

Item specifics

Name
Flammability Tester APPLICATION
Inner chamber size
≥0.53, with glass window observation door
Angle
20 °, 45 °, 90 ° (adjustable)
Flame height
can be adjusted from 20mm to 175mm
Power
1 phase, AC 220V / 50Hz
Flame time
0~99min99s, can be set

Product review

Description

APPLICATION

This tester is suitable for the inspection and evaluation of the burning characteristics of plastic materials. It is equipped with a gas flow meter to adjust the size of the flame, using motor drive, simple and safe operation.

TEST STANDARD

UL94IEC60695

STANDARD FEATURES

Inner chamber size

≥0.53, with glass window observation door

Flame time

099min99s, can be set

After flame time

099min99s, can be set

Residual time

099min99s, can be set

Angle

20 °, 45 °, 90 ° (adjustable)

Four counter

preset spark timing, flame retardant timing, burnout timing, residual timing

Burner size

The inner diameter of the nozzle is Ø9.5mm, and the effective length of the nozzle is 100mm. With air conditioning hole

Flame height

can be adjusted from 20mm to 175mm

Power

1 phase, AC 220V / 50Hz
