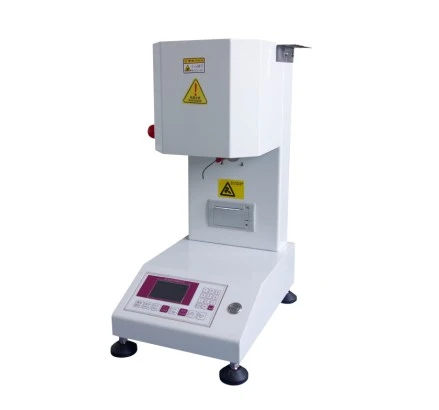

Plastic Melt Flow Index Tester
Plastic Melt Flow Index Tester
Model
HUD-R803

Item specifics

Temperature range
0℃-450℃
emperature fluctuation
±0.2℃
Temperature uniformity
±1℃
Resolution of temperature
0.1℃
Die diameter
Φ2.095±0.005mm
Measuring range
0.1~300g/10min

Product review

Description

APPLICATION

Melt Flow Index Tester is used to determine the MFR value of melt flow rate through a standard die every 10 minutes when various plastics and resins pass a certain temperature and load in a viscous flow state. It is suitable for polycarbonate, polyarylsulfone, and fluorine with higher melting temperature. Engineering plastics such as plastic and nylon. It is also suitable for polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), polycarbonate (PC) resin, etc. The melting temperature is low The plastic testing is widely used in plastic production, plastic products, petrochemical industries and related universities, scientific research units and commodity inspection departments.

TEST STANDARD

ASTM-D1238, ISO 1133, GB/T3682-2018

FEATURES

1. Color LCD display only in Chinese and English

2. Automatic manual cutting

3. Dual temperature control system, the temperature control accuracy is more accurate, and the heating efficiency is higher

4. Double imported sensors, the upper and lower temperature gradients are more accurate, can be used independently, and improve the service life

5. The barrel is made of imported Hastelloy alloy nitriding, the die is made of carbon tungsten steel, and the materials used are real

6. The heat preservation barrel is made of all sus304 stainless steel, which will not rust at high temperature for a long time

7. Automatically calculate the result and print it out

SPECIFICATION

Temperature range

 0℃-450℃

Temperature fluctuation

 ±0.2℃

Temperature uniformity

 ±1℃

Resolution of temperature display

 0.1℃

Time display resolution

 0.1S

Die diameter

 Φ2.095±0.005mm

Length of the discharge port

 8.000±0.025mm

Diameter of charging cylinder

 Φ9.550±0.025mm

Weight accuracy

 ±0.5%

Measuring range

0.1~300g/10min

Output mode

 micro automatic printout

Cutting method

 manual and automatic cutting

Test load

 8 levels in total, 8 sets of weights

Power supply voltage

 AC220V±10% 50HZ
