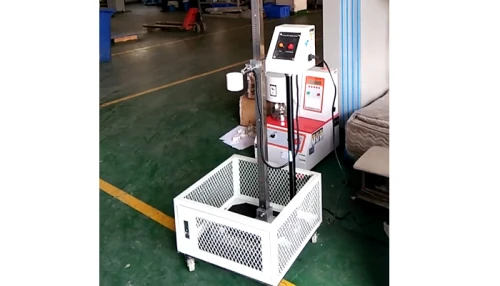

1mm 220V Falling Ball Impact Tester
- Model
- HUD-R601
Item specifics
- Name
- Falling Ball Impact Tester
- Drop height
- 0~2000mm
- Drop height accuracy
- 1mm
- Test sample size
- ≤280x100x40mm
- Weights
- 112g、198g、225g、357g、533g、1041g、2280g
- Power
- Single phase, 220V, 50Hz
Review
Description
Application
This machine is designed to check the collision of finished products or components such as plastics during the installation process, so as to evaluate whether the product structure is defective. The steel ball with a certain weight can freely fall at a certain height and hit the sample. , components, to observe the degree of product damage.
Specification
Drop height | 0~2000mm |
Drop height accuracy | 1mm |
Control mode | Electrical solenoid control, lifting height adjusted manually |
Test sample size | ≤280x100x40mm |
Weights | 112g、198g、225g、357g、533g、1041g、2280g |
Protection cabinet | Cabinet to avoid test sample and weights fall out |
External Dimension | W*D*H: 500mm×500mm×2100mm |
Package Dimension | W*D*H: 221mm×610mm×630mm |
Power | Single phase, 220V, 50Hz |
