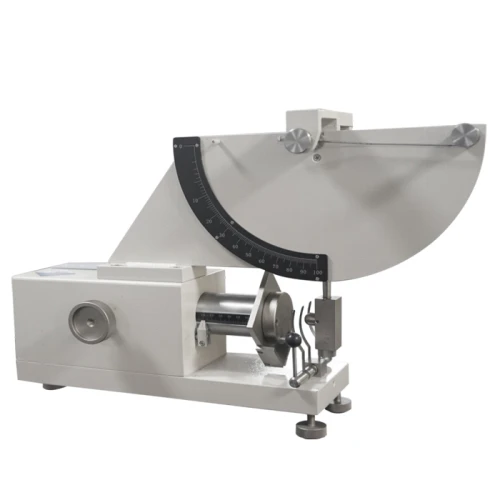

Rubber Rebound Resilience Tester
Rubber Rebound Resilience Tester
Rubber Rebound Resilience Tester
Rubber Rebound Resilience Tester
Model
HUD-R810

Item specifics

Name
Rubber Rebound Resilience Tester
Indentor diameter
Φ12.45 mm ~ 15.05 mm
Sample thickness
12.5±0.5 mm
Impacting mass
0.34 kg ~ 0.35kg
Impact velocity
1.4 m/s to 2.0 m/s
Dimensions
L*W*H:320×200×360mm

Product review

Description

Application

The rubber rebound resilience tester shall be measured by means of an apparatus consisting of a pendulum-like one degree of freedom mechanical oscillatory device and heavy and secure test piece holder.

Test standard

ISO 4662: Rubber, vulcanized or thermoplastic-Determination of rebound resilience - pendulum method

Specification

Indentor diameter

Φ12.45 mm ~ 15.05 mm

Sample thickness

12.5±0.5 mm

Impacting mass

0.34 kg ~ 0.35kg

Impact velocity

1.4 m/s to 2.0 m/s

Apparent strain energy density

324 kJ/m3 ~ 463 kJ/m3

Indication error

± 0.5%

Dimensions

L*W*H:320×200×360mm

Machine weight

20 kg
