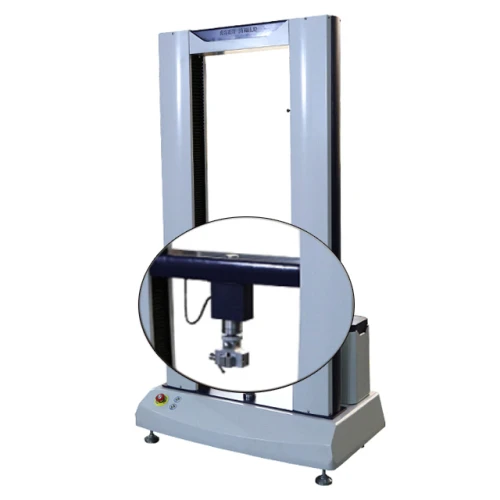

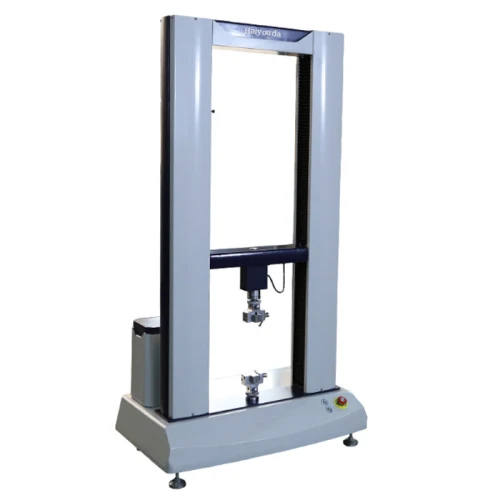

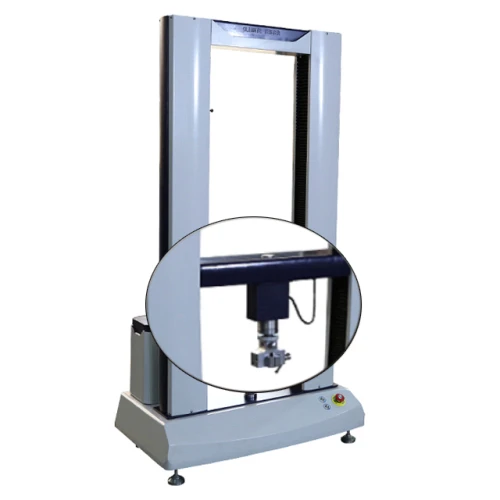

Universal Tensile Machine (Double column)
Universal Tensile Machine (Double column)
Universal Tensile Machine (Double column)
Universal Tensile Machine (Double column)
Model
HUD-B604-S

Item specifics

Name
Universal Tensile Machine
Max. Force
2T (20KN)
Load cell
Germany brand load cell for high accuracy
Control system
PC with windows 7 system or windows 10 system
Force reading
kgf, Ibf, N, KN, T etc
Load cell Resolution
1/250,000

Product review

Description

APPLICATIONS

1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

3. Deformation under defined load: Test deformation under defined load of tested sample

4. Load under defined deformation: Test load under defined deformation of tested sample

5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

STANDARD FEATURES

Models

HUD-B604-S

Max. Force

2T (20KN)

Load cell

Germany brand load cell for high accuracy

Control system

PC with windows 7 system or windows 10 system

Motor

Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Stoke

1100mm including fixture

Load cell Resolution

1/250,000

Load Precision

0.5%

Test speed

0.01~500mm/min (adjustable)

Test width

420mm

Dimension (L×W×H)

985*510*2100mm

Weight

320KG Approx

Software

TM 2101

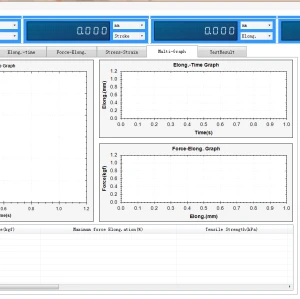

Curves display

Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display

Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc

Safety features

1.E-Stop

2.Over-load protection

3.Upper and lower limit switches

4. Load sensor with automatic retreat
